+++ CITIES AND MONSTERS +++

processing workshop 6, 7, 8, 9 JULY 11:00 - 18:00
IKA - akademie of fine arts 2 floor



This browser does not have a Java Plug-in.
Get the latest Java Plug-in here.



Built with Processing

/**

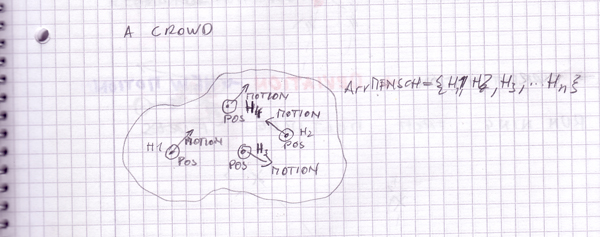

* a_mass is a quick simulation of a mass of humans running around
* @author: Processing Workshop @ IKA 09 IKA/akbild.ac.at
* @version: 1.0
*/


ArrayList ArrM;                           // define the variable ArrM as ArrayList();

void setup() {                            // setup define the basic layout of your sketch
  size(300,300);                          // set Size of the Window to 300/300
  frameRate(25);                          // frameRate try's to call draw function 25 times / second
  ArrM = new ArrayList();                 // initialize the variable ArrM as ArrayList();
  for (int i = 0; i < 100;i++) {          // loop a 100 times
    ArrM.add( new MENSCH() );             // and add 100 MENSCHen into the ArrM ArrayList();
  }
}

void draw() {                             // use this function to draw elements to the screen
  background(255);                        // set the background to white
  MENSCH M;                               // Define a variable M of the class MENSCH
  for (int i =0; i < ArrM.size();i++){    // cycle through all MENSCHen stored in the ArrayList arrM
    M = (MENSCH) ArrM.get(i);             // get the i'th MENSCH an cast it into the variable M
    M.Update();                           // call the Update() Method of the Class MENSCH
    M.Render();                           // call the Render() Method of the Class MENSCH
  }
}

/**
* MENSCH is a class for www.processing.org
* MENSCH will simulate a human running around
* @author: Processing Workshop @ IKA 09 ika/akbild.ac.at
* @version: 1.0
*/


class MENSCH {

  PVector PVPos, PVDir;                                             // PVPos = current Position, PVDir = current Motion
  float Size;                                                       // Size = personal Space of each Human
  final float MaxSpeed = 3.0;                                       // MaxSpeed = 3.0 m/s

  MENSCH() {
    this.Size = random(2,5);                                        // define a personal space between 2 and 5 Meters
    this.PVPos = new PVector( random(width),random(height) );       // position MENSCH somewhere into the Window
    this.PVDir = new PVector( random(-1,1),random(-1,1) );          // create a random Motion
  }

  /** call to move the Person
  */

  void Update() {
    this.PVPos.add(this.PVDir);                                     // adds the current Motion to the Position
    this.PVDir.add( new PVector( random(-.1,.1),random(-.1,.1) ) ); // changes the current Motion a little bit
    this.PVDir.limit(MaxSpeed);                                     // limits the speed of the current Motion
    if (this.PVPos.x > width) {                                     // if a MENSCH walks out of the screen at the bottom
      this.PVPos.x -= width;                                        // it comes back at the top
    }
    else if (this.PVPos.x < 0) {                                    // top ==> bottom
      this.PVPos.x += width;
    }
    if (this.PVPos.y > height) {                                    // right ==> left
      this.PVPos.y -= height;
    }
    else if (this.PVPos.y < 0) {                                    // left ==> right
      this.PVPos.y += height;
    }
  }

  /** call to display the human on the screen
  */

  void Render() {
    pushStyle();
    strokeWeight(2);
    ellipse(this.PVPos.x,this.PVPos.y,this.Size,this.Size);
    strokeWeight(0);
    stroke(247,5,167);
    line(this.PVPos.x,this.PVPos.y,this.PVPos.x+this.PVDir.x*20,this.PVPos.y+this.PVDir.y*20);
    popStyle();
  }
}
