Built with Processing
* a_collition is a quick simulation of a mass of humans running arround, including colliton detection
* @author: Processing Wokrshop @ IKA 09 ika/akbild.ac.at
* @version: 1.0
*/
ArrayList ArrM; // define the variable ArrM as ArrayList();
void setup() { // setup define the basic layout of your sketch
size(300,300); // set Size of the Window to 300/300
frameRate(25); // frameRate try's to call draw function 25 times / second
ArrM = new ArrayList(); // initialize the variable ArrM as ArrayList();
for (int i = 0; i < 100;i++) { // loop a 100 times
ArrM.add( new MENSCH() ); // and add 100 MENSCHen into the ArrM ArrayList();
}
}
void draw() { // use this function to draw elements to the screen
background(255); // set the background to white
MENSCH M; // Define a variable M of the class MENSCH
for (int i =0; i < ArrM.size();i++){ // cycle through all MENSCHen stored in the ArrayList arrM
M = (MENSCH) ArrM.get(i); // get the i'th MENSCH an cast it into the variable M
M.Update(ArrM); // call the Update() Method of the Class MENSCH
M.Render(); // call the Render() Method of the Class MENSCH
}
}
/**
* MENSCH is a class for www.processing.org
* MENSCH will simulate a human running around
* @author: Processing Workshop @ IKA 09 ika/akbild.ac.at
* @version: 1.1
*/
class MENSCH {
PVector PVPos, PVDir; // PVPos = current Position, PVDir = current Motion
float Size; // Size = personal Space of each Human
final float MaxSpeed = 3.0; // MaxSpeed = 3.0 m/s
MENSCH() {
this.Size = random(2,5); // define a personal space between 2 and 5 Meters
this.PVPos = new PVector( random(width),random(height) ); // position MENSCH somewhere into the Window
this.PVDir = new PVector( random(-1,1),random(-1,1) ); // create a random Motion
}
/** call to move the Person
*/
void Update(ArrayList ArrTemp) { // if the method void is called ask for an ArrayList containing all other humans
float TempF; // define a float variable
MENSCH TempM; // define a MENSCH variable
PVector TempV; // define a PVector variable
for (int i = 0; i < ArrTemp.size();i++){ // cycle through all MENSCHen stored in ArrTemp
TempM = (MENSCH) ArrTemp.get(i); // get the i'th MENSCH to compare
TempV = PVector.add(this.PVPos,this.PVDir); // get the future position of this MENSCH
TempF = TempV.dist(TempM.PVPos); // calculate the distance between the future position of this MENSCH and the other MENSCH

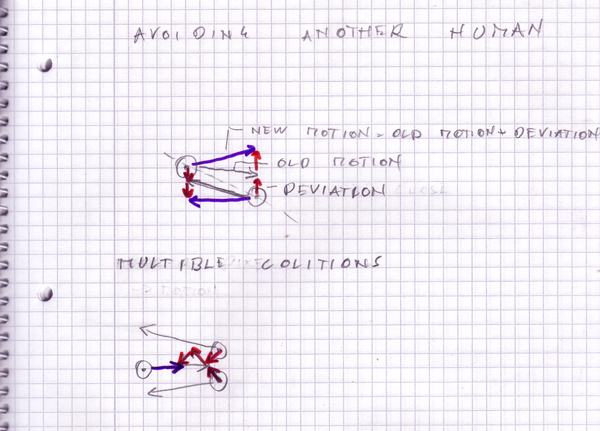

if (TempF < this.Size + TempM.Size && ArrTemp.indexOf(this) != i) { // if the distance between the future position if this MENSCH and
// the other MENSCH is to small and it is not himself
TempV = PVector.sub(TempV,TempM.PVPos); // get the Vector from the other MENSCH to the future position of this MENSCH
TempV.limit((this.Size+TempM.Size)-TempF); // limits the length so that the deviation is a minimum
this.PVDir.add(TempV); // add deviation to the current direction so that the two MENSCHen do not collide
pushStyle(); // display collision detection to screen
stroke(197,252,18);
noFill();
strokeWeight(2);
ellipse(this.PVPos.x,this.PVPos.y,this.Size,this.Size);
popStyle();
}
}
this.PVDir.limit(MaxSpeed); // limits the speed of the current Motion
this.PVPos.add(this.PVDir); // adds the current Motion to the Position
this.PVDir.add( new PVector( random(-.1,.1),random(-.1,.1) ) ); // changes the current Motion a little bit
this.PVDir.limit(MaxSpeed); // limits the speed of the current Motion
if (this.PVPos.x > width) { // if a MENSCH walks out of the screen at the bottom
this.PVPos.x -= width; // it comes back at the top
}
else if (this.PVPos.x < 0) { // top ==> bottom
this.PVPos.x += width;
}
if (this.PVPos.y > height) { // right ==> left
this.PVPos.y -= height;
}
else if (this.PVPos.y < 0) { // left ==> right
this.PVPos.y += height;
}
}
/** call to display the human on the screen
*/
void Render() {
pushStyle();
strokeWeight(2);
ellipse(this.PVPos.x,this.PVPos.y,this.Size,this.Size);
strokeWeight(0);
stroke(247,5,167);
line(this.PVPos.x,this.PVPos.y,this.PVPos.x+this.PVDir.x*20,this.PVPos.y+this.PVDir.y*20);
popStyle();
}
}
